JCB 3CX Compact Highways Master
Product Specifications
Max. Dig Depth: 4.33 m
Shovel Capacity: 0.7 m³ – 0.92 m³
Max. Engine Power: 55 kW
Max. Reach: 1.16 m – 1.22 m
Travel Speed: 40 kph
Operating Weight: 8,200 kg
Description

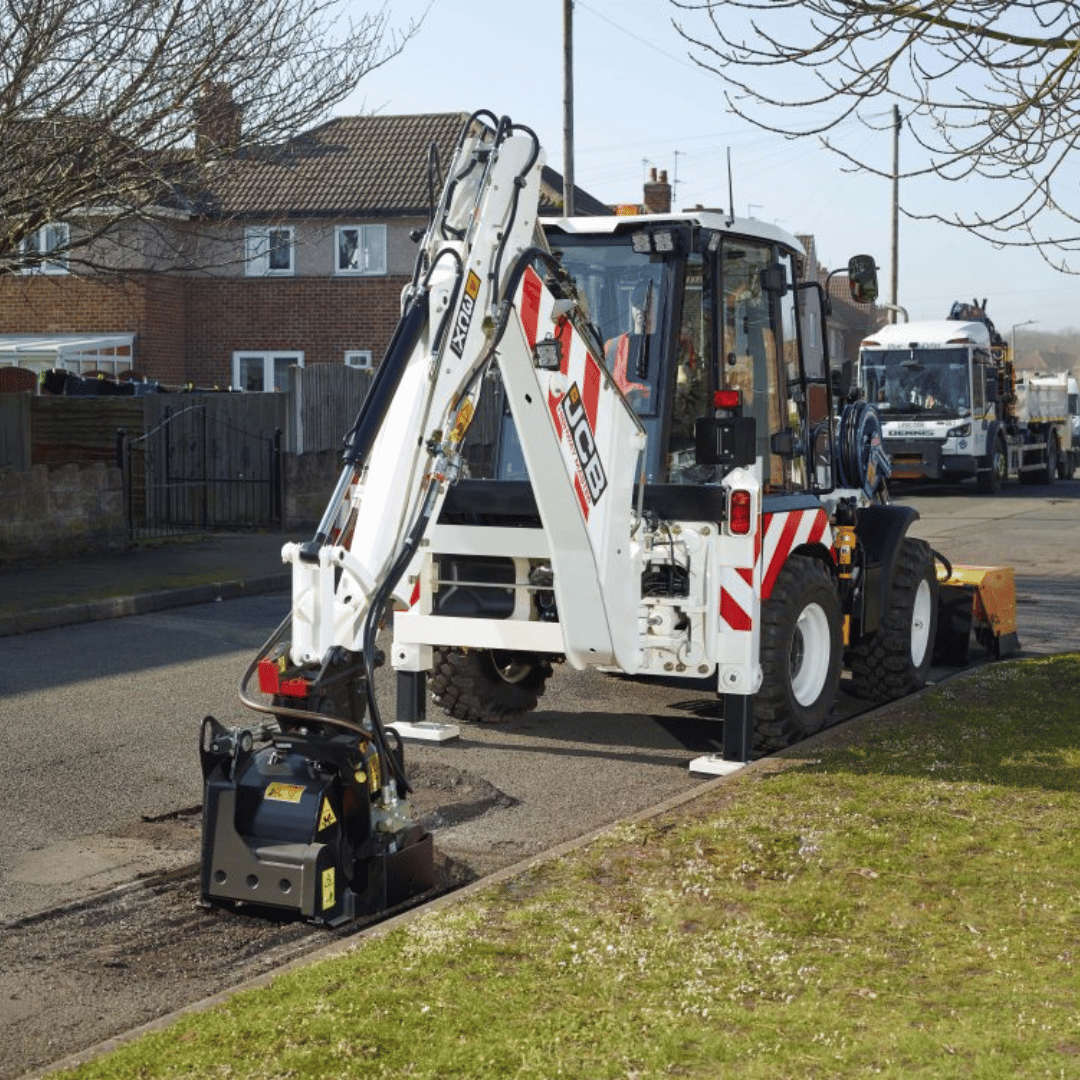

INTRODUCING THE 3CX Compact Highways Master
Nothing can match the 3CX Compact Highways Master for productivity. With a 70% increase to the new front mounted planer, this built-for-purpose machine can make short work of resurfacing projects.
- 2-in-1 road planning capability means more work with less equipment
- Rear boom mounted fully hydraulic 300mm road planer for precision working.
- Attach a front mounted 600mm planer for larger reinstatement operations.
- Powerful and constant hydraulic flow optimises performance and maintains speed.
PERMANENT SAFETY
The 3CX Compact Highways Master can work safely within a single carriageway decreasing disruption for road users. A high visibility cab with front and rear cameras and a dust suppression system provide unsurpassed safety and preserve costly attachments.
- Powerslide enables a squared off cross cut whilst the machine is stationary.
- An integrated dust suppression system engages automatically.
- Raised high visibility cab provides 360 degrees visibility.
- Front and rear cameras as standard provide complete clarity.
PERMANENT VERSATILITY
The 3CX Compact Highways Master offers the ultimate in versatility being able to plane, sweep, dig, doze, grab, grade, lift, load, backfill, tow and more.
- Skid steer loader quick hitch to the front allows common skid steer attachments.
- New Vari-Speed Pro allows for independent control of flow rate and travel speed.
- 40km/h road speed enables driving from one job to the next fully equipped.
- New multi lever joystick allows for fine operation of multiple functions of the machine.
3CX COMPACT DNA
At 35% smaller than a standard backhoe, the 3CX Compact measures just 1.95m wide and 2.74m high.
- With a turning circle 16% smaller than a standard size backhoe loader, the 3CX Compact can turn within a single carriageway.
- With a front-end skid-steer carriage and high-flow hydraulics to the front and rear, the 3CX Compact is as versatile as any machine in the market.
- At a maximum road speed of 40kph, the 3CX Compact can be deployed to site without the need for additional transportation.
- For added flexibility, there’s an optional handheld tool circuit built in that can power a huge array of attachments, such as water pumps, disc cutters, augers, hand breakers and much more.
